Manufacture Supply Double Sheathed Shielded Robot Cable

Supply Double Sheathed Shielded Robot Cable | China Deru Manufacturer

Спецификация

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Узнать сейчас Следующий продукт

ВВЕДЕНИЕ

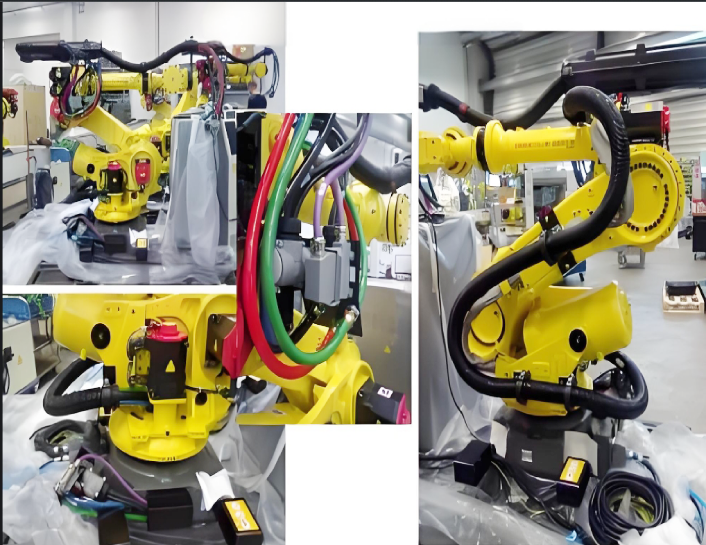

Typical applications of China derul robot cables:

derul robot cables are used as connecting cables in different industrial sectors, such as the manufacture of industrial robots, factories and machine tools. This type of robot cables are suitable for medium mechanical stresses, especially friction, high flexibility and resistance to torsional stresses, and at the same time under loads without tensile stresses It can bend freely. This type of robot cable can be used in places where drag chains cannot be used due to structure. It can also be used in low temperature, dry and humid rooms and unprotected places.

China derul robot cable product structure:

Conductor material: 0.14mm²~0.34mm² refined multi-strand bare copper wire stranded

≥0.5mm² multi-stranded bare copper wire stranded in accordance with VDE0295, level 6

Insulation material: high quality high mechanical performance TPE material insulation

Color code: 0.14mm²~0.34mm² conforms to the color code

≥0.5mm² black core wire with consecutive numbers conforms to EN50334, more than 3 cores with a yellow-green grounding wire

Tensile components: polyester yarn fiber and Kevlar tensile bulletproof yarn filling strips

Core structure: Each layer is specially treated and wrapped with non-woven tapes

Inner sheath: modified low viscosity strong extrusion inner sheath (optional)

Shielding structure: tinned copper wire braided copper mesh shielding, density above 85%

Sheath material: special modified elastomer nitrile/special PUR material

Sheath color: black (RAL9005)

Gray (RAL7001)

Orange (RAL2003)

Remarks: Derul Cable can provide customized samples and drawings to produce a series of highly flexible industrial robot cable products.

Technical parameters of China derul robot cable:

Voltage: 0.14mm²~0.34mm² 300/300V

≥0.5mm² 600V

Maximum operating voltage: 0.14mm²~0.34mm², maximum 350V

≥0.5mm² 300/500V

Test voltage: 0.14mm²~0.34mm² 1500V in line with DIN VDE0472

≥0.5mm² 3000V complies with DIN VDE0281

Minimum bending radius: High flexibility 5*D

Operating temperature

Fixed laying: -30℃ to +70℃;

Mobile installation: -20℃ to +70℃

Radiation resistance: 8×107cJ/kg

Flame retardancy: in line with IEC60332-1-2+EN60332-1-2

The oil resistance and chemical resistance of derul high-flexible robot cables can be found in the oil resistance and chemical resistance tables respectively.

ПРЕИМУЩЕСТВА

Durable

Highly flexible, oil-resistant, shallow water-resistant, UV-resistant, and weather-resistant

Cold-resistant, low-temperature resistant, wear-resistant, able to withstand heavy mechanical external forces

Jiarou's highly flexible robot cable has faster acceleration and stronger bending resistance than ordinary flexible cables.

Stable signal transmission characteristics (anti-interference, anti-crosstalk)

ВОЗМОЖНОСТЬ ПЕРСОНАЛИЗАЦИИ

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

Часто задаваемые вопросы

Q: Derul Cable является производителем или торговой компанией?

A: Derul Cable - это специальный производитель кабелей, базирующийся в Шанхае.

Q: Является ли цена договорной?

A: Да, цена договорная в зависимости от объема покупки.

Q: Каков стандартный минимальный заказ для кабеля?

A: Любое количество можно приобрести для товара на складе. Для продукции, которая должна быть изготовлена после заказа, минимальный объем заказа обычно составляет 100-200 м на тип.

Q: Как я могу получить образцы?

A: После оплаты потенциальной стоимости, включая экспресс-доставку и подтверждение размеров и структуры кабеля, мы организуем образец и отправим его прямо к вашей двери.

Q: Доступны ли услуги OEM или ODM?

A: Доступны услуги OEM и ODM. Вы можете предоставить нам свое требование, и мы оценим его, чтобы продвинуться вперед.

Q: Каково обычное время производства?

A: Для производства обычного количества обычно требуется около 15-25 дней.
