Custom Supply TRVVSP shielded drag chain cable | China Derul Cable Manufacturer

Supply TRVVSP shielded drag chain cable | China Derul Cable Manufacturer

Спецификация

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Узнать сейчас Следующий продукт

ВВЕДЕНИЕ

China-Derul TRVVSP drag chain cable introduction:

It adopts a core wire structure design of two twisted pairs, and the high-density shielding layer of the cable is braided with tinned copper wire. The designed cable has excellent signal transmission feedback capability and excellent anti-electromagnetic interference performance. At the same time, the optimized special high-flexibility structure strengthens the design and is designed to meet the widespread use of cables in drag chain situations with frequent reciprocating bending and movement. It is mainly used for drag chain signal transmission feedback connection installation in conventional indoor working conditions.

For more complex and harsh working conditions, our company can specially customize the design of polyurethane PUR (TPU) twisted pair shielded drag chain cables that meet the requirements of indoor or outdoor scenes, and meet the requirements of wear resistance, oil resistance, waterproofing, acid and alkali corrosion resistance, etc. Special working conditions requirements;

For low-temperature environments, such as low-temperature environments in winter, such as cold storage cold chain systems, our company can design drag chains to meet a wide range of installation applications in low-temperature environments.

China Derul trvvsp drag chain cable structure design:

Cable conductor: Ultra-fine oxygen-free bare copper wire, multi-strand finely twisted and bundled, conforming to VDE 0295/CLASS Class 6 conductor standard (reinforced conductor structure can be customized);

Cable insulation: High-quality mixed elastomer material insulation design; meets the strict electrical performance of the cable and improves the mechanical performance of the cable;

Core structure: short-pitch optimized twisted pair structure design;

Core wire distinction: colored wire core distinction or digital coding distinction;

Inner protective layer: low viscosity strong extrusion inner protective layer (if any);

Shielding layer: High-density shielding layer of tinned copper wire braid design cable;

Outer protective layer: special modified elastomer material; available in black, gray, green, etc.;

Main parameters of China Derul trvvsp drag chain cable products:

Rated voltage: 300/300V 300/500V;

Test voltage: 2000V;

Bending radius: 7.5xD (mobile installation);

Temperature range: -10~+70℃ (mobile installation);

Bending resistance service life: 5 million times, 8 million times;

Comply with certification: CE RoHS;

With optimized material selection and sheath material selection, the designed cable has excellent electrical performance and cable characteristics. The designed cable is particularly suitable for data signal transmission and feedback installation applications in drag chain situations. The designed cable is widely used in indoor conventional working conditions. Installation application. For installation applications under special working conditions and environments, our company can specially design and customize it. Friends in need are welcome to consult and purchase.

ПРЕИМУЩЕСТВА

● Highly flexible and resistant to bending, the designed cable has excellent high-frequency reciprocating bending and movement performance, meeting a wide range of installation applications in drag chain applications;

● The designed cable has excellent anti-electromagnetic interference performance;

● The designed cable has excellent differential signal transmission capabilities and strong signal transmission capabilities;

● The cable has excellent wear resistance, weather resistance, tear resistance, oil resistance, shallow water resistance, aging resistance, mechanical properties, aging resistance and other excellent properties, and meets the performance requirements of normal indoor environments;

ВОЗМОЖНОСТЬ ПЕРСОНАЛИЗАЦИИ

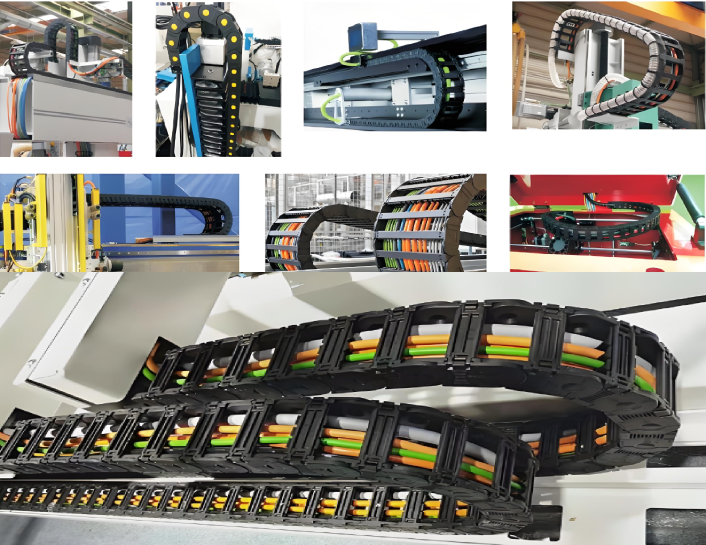

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

Часто задаваемые вопросы

Q: Derul Cable является производителем или торговой компанией?

A: Derul Cable - это специальный производитель кабелей, базирующийся в Шанхае.

Q: Является ли цена договорной?

A: Да, цена договорная в зависимости от объема покупки.

Q: Каков стандартный минимальный заказ для кабеля?

A: Любое количество можно приобрести для товара на складе. Для продукции, которая должна быть изготовлена после заказа, минимальный объем заказа обычно составляет 100-200 м на тип.

Q: Как я могу получить образцы?

A: После оплаты потенциальной стоимости, включая экспресс-доставку и подтверждение размеров и структуры кабеля, мы организуем образец и отправим его прямо к вашей двери.

Q: Доступны ли услуги OEM или ODM?

A: Доступны услуги OEM и ODM. Вы можете предоставить нам свое требование, и мы оценим его, чтобы продвинуться вперед.

Q: Каково обычное время производства?

A: Для производства обычного количества обычно требуется около 15-25 дней.
