High Quality Garbage Crane Reeling Cable-China Deru Brand-Suppliers and Manufacturers

Garbage Crane Reel Cable-China Derul Brand-Suppliers and Manufacturers

Спецификация

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Узнать сейчас

ВВЕДЕНИЕ

Chinese brand-Derul garbage crane drum cable |Application scope:

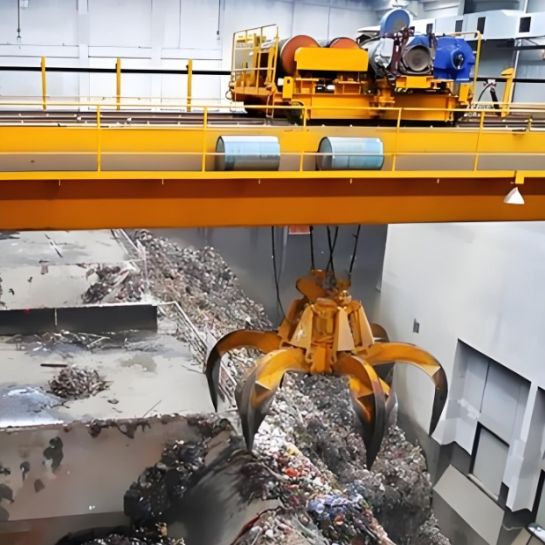

Suitable for waste incineration power plants, mining construction sites, hoisting sites, large logistics transfer sites, ports and terminals and other places, in marine grabs, garbage grabs, cleaning machine grabs, mobile cranes and cranes and other equipment Wide range of applications.

Chinese brand - Derul garbage crane drum cable | Characteristic requirements:

◆Flexibility and bendability

◆High tensile strength, tear resistance and wear resistance

◆Excellent oil resistance, abrasion resistance, cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use

Chinese brand-Derul garbage crane drum cable|Product structure:

Conductor: Multi-strand finely twisted oxygen-free copper wire conforms to VDEO295 CLASS 5 standard

Insulation: Special high-strength elastomer insulation

Color code: black number

Cabling: grouped short pitch stranding, center/edge filled with tensile elements

Inner sheath: wear-resistant, oil-resistant nitrile/PUR inner sheath

Reinforcement layer: aramid braided reinforcement layer

Outer sheath: wear-resistant, oil-resistant polyurethane (PUR) sheath

Sheath color: yellow/black

Chinese Brand-Derul Garbage Crane Reeling Cable|Technical Description:

Rated voltage: U₀/U 0.6/1kV

Test voltage: 3500V/5min

Minimum bending radius:

Fixed laying: 6×D (cable outer diameter)

Mobile installation: 10×D (cable outer diameter)

Maximum pulling force: 20N/mm²

Maximum moving speed: 180m/min

Operating temperature

Fixed laying: -25℃ to +70℃

Mobile installation: -15℃ to +70℃

Flame retardancy: in line with IEC60332-1

ПРЕИМУЩЕСТВА

※Suitable for waste incineration power plants, the cable does not bulge, deform, core-free, and is corrosion-resistant

※Using a unique double sheath structure design, with bullet-proof and tensile fibers woven between the sheaths to effectively avoid cable

Twists, bulges, and deformations occur during use.

※Using imported PUR polyurethane material, high strength and high wear resistance, effectively protecting the cable from external forces

The impact of rolling and dragging greatly extends the service life of cables.

※Technical support for foreign cables from Germany, France, Italy and other countries, which can replace imported cables and is cost-effective

※Customized products can be designed according to the actual usage conditions of customers.

※Short delivery cycle and fast delivery

ВОЗМОЖНОСТЬ ПЕРСОНАЛИЗАЦИИ

Whenever standards are not enough!

Multiple strands of finely twisted oxygen-free copper wire, conforming to VDE0295 CLASS 5 standard

Nitrile rubber material is used as the outer sheath, which has high strength and high wear resistance, effectively protecting the cable from external

deformation due to force, greatly extending the service life of the cable

Technical support for foreign cables from Germany, France, Italy and other countries, which can replace imported cables and is cost-effective

Customized products can be designed according to the actual usage conditions of customers.

Short delivery cycle and fast delivery

Часто задаваемые вопросы

Q: Derul Cable является производителем или торговой компанией?

A: Derul Cable - это специальный производитель кабелей, базирующийся в Шанхае.

Q: Является ли цена договорной?

A: Да, цена договорная в зависимости от объема покупки.

Q: Каков стандартный минимальный заказ для кабеля?

A: Любое количество можно приобрести для товара на складе. Для продукции, которая должна быть изготовлена после заказа, минимальный объем заказа обычно составляет 100-200 м на тип.

Q: Как я могу получить образцы?

A: После оплаты потенциальной стоимости, включая экспресс-доставку и подтверждение размеров и структуры кабеля, мы организуем образец и отправим его прямо к вашей двери.

Q: Доступны ли услуги OEM или ODM?

A: Доступны услуги OEM и ODM. Вы можете предоставить нам свое требование, и мы оценим его, чтобы продвинуться вперед.

Q: Каково обычное время производства?

A: Для производства обычного количества обычно требуется около 15-25 дней.
