Supply of reeling cable for stacker and reclaimer-Global quality manufacturer Supply

Supply of reeling cable for stacker and reclaimer-Global quality manufacturer

Спецификация

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Узнать сейчас

ВВЕДЕНИЕ

DeRu stacker and reclaimer reeling cable|Application scope:

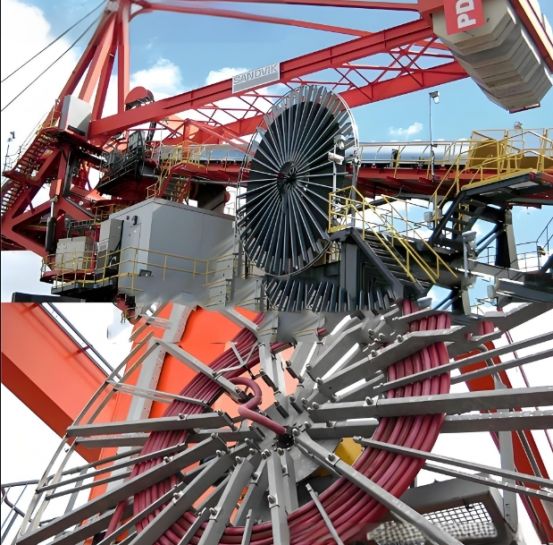

The product is used in reels or reels of stackers, reclaimers and ship unloaders that require the use of flat cables, and is used in ports, docks, metallurgy, steel, coal mines, power plants, cement plants and other occasions.

Deru stacker and reclaimer reeling cable|product structure：

Conductor: Multi-strand finely twisted tinned copper wire conforming to VDEO295 CLASS 5 standard

Conductor shielding: Each core is wrapped with semi-conductive tape

Insulation: Special high-strength ethylene-propylene insulation

Insulation shielding: Each core is wrapped with semi-conductive tape + tinned copper braid

Ground wire: Each core is tinned copper wire braided, with a density of more than 80%

Optical fiber: single-mode/multi-mode optical fiber 1~24 cores (50/125, 62.5/125, 9/125)

Core wire structure: one-line arrangement

Outer sheath: wear-resistant, oil-resistant nitrile/PCP sheath

Sheath color: gray (RAL7001)/black (RAL9005)

Deru stacker and reclaimer reeling cable|technical description:

Rated voltage: U₀/U 3.6/6~12/20kV

Test voltage: 3.5 U₀

Minimum bending radius:

Fixed laying: 8×D (cable outer diameter)

Mobile installation: 10×D (cable outer diameter)

Maximum pulling force: 15N/mm²

Operating temperature

Fixed laying: -40℃ to +90℃

Mobile installation: -20℃ to +90℃

Flame retardancy: in line with IEC60332-1

ПРЕИМУЩЕСТВА

Multiple strands of finely twisted oxygen-free copper wire, conforming to VDE0295 CLASS 5 standard

Nitrile rubber material is used as the outer sheath, which has high strength and high wear resistance, effectively protecting the cable from external

deformation due to force, greatly extending the service life of the cable

Technical support for foreign cables from Germany, France, Italy and other countries, which can replace imported cables and is cost-effective

Customized products can be designed according to the actual usage conditions of customers.

Short delivery cycle and fast delivery

ВОЗМОЖНОСТЬ ПЕРСОНАЛИЗАЦИИ

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

Часто задаваемые вопросы

Q: Derul Cable является производителем или торговой компанией?

A: Derul Cable - это специальный производитель кабелей, базирующийся в Шанхае.

Q: Является ли цена договорной?

A: Да, цена договорная в зависимости от объема покупки.

Q: Каков стандартный минимальный заказ для кабеля?

A: Любое количество можно приобрести для товара на складе. Для продукции, которая должна быть изготовлена после заказа, минимальный объем заказа обычно составляет 100-200 м на тип.

Q: Как я могу получить образцы?

A: После оплаты потенциальной стоимости, включая экспресс-доставку и подтверждение размеров и структуры кабеля, мы организуем образец и отправим его прямо к вашей двери.

Q: Доступны ли услуги OEM или ODM?

A: Доступны услуги OEM и ODM. Вы можете предоставить нам свое требование, и мы оценим его, чтобы продвинуться вперед.

Q: Каково обычное время производства?

A: Для производства обычного количества обычно требуется около 15-25 дней.
